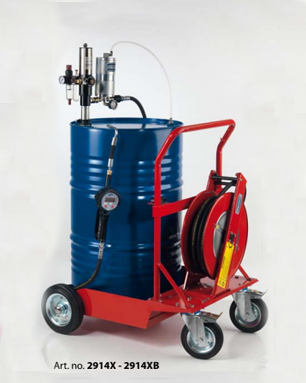

Art. no. 2914X

Mobile pneumatic oil dispensing kit, for 208 l – drums, with hose reel and heavy duty trolley equipped with bigger wheels suitable also for the use on rough surfaces, with air separator kit, consisting of:

  • Pneumatic double acting 3:1 - oil pump, art. no. 2020 (see page 41!);
  • Plastic bung adapter for the fi xation of pumps on drums, art. no. 4340;
  • Air separator kit, art. no. 2052;
  • Manometer for outlet pressure control;
  • Heavy duty trolley with 4 wheels and grate, art. no. 4389;
  • Open hose reel, art. no. 9016;
  • 15 m – rubber hose Ø 1/2”, art. no. 28715;
  • 1 m – rubber connection hose Ø 1/2”, art. no. 28701;
  • Electronic fl ow meter for oil, with control gun, rubber protection guard, trigger guard, rigid outlet, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M), art. no. 2626 (see page 61!);
  • Pressure regulator with manometer, condensation water separator and lubricator, art. no. 7150.

Art. no. 2914XB

Mobile pneumatic oil dispensing kit with heavy duty trolley, for 208 l – drums, such as art. no. 2914X, but with air separator kit with automatic pump stop device, art. no. 2053 (stopping the pump as soon as air is sucked into the suction line due to an empty drum or tank).

Art. Weight Dimensions (LxWxH) (mm)
2914X 93 kg 790x900x1400
2914XB 94 kg 790x900x1400

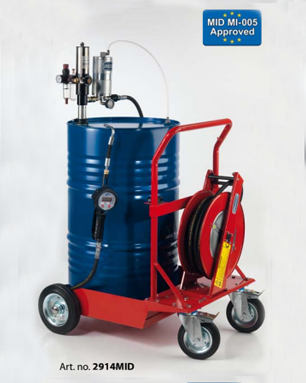

Art. no. 2914MID

Mobile pneumatic oil dispensing kit with with hose reel and heavy duty trolley equipped with bigger wheels suitable also for the use on rough surfaces, for 208 l – drums, with air separator, approved for legal transactions according to the European Directive 2014/32/EU, better known as Measurement Instrument Directive MID MI-005, consisting of:

  • Pneumatic double acting 3:1 - oil pump, art. no. 2020 (see page 41!);
  • Air separator kit with automatic pump stop device (stopping the pump as soon as air is sucked into the suction line due to an empty drum or tank), art. no. 2050, approved according to OIML R117-1 (see page 44!);
  • Manometer for outlet pressure control;
  • Plastic bung adapter for the fi xation of pumps on drums, art. no. 4340;
  • - Heavy duty trolley with 4 wheels and grate, art. no. 4389;
  • - Open hose reel, art. no. 9016;
  • 15 m – rubber hose Ø 1/2”, art. no. 28715;
  • 1 m – rubber connection hose Ø 1/2”, art. no. 28701;
  • Electronic oval gears fl ow meter for oil, approved for legal transactions according to MID MI-005, Directive 2014/32/EU, with control gun, rubber protection guard, trigger guard, oil fl ow control tube with transparent insert, fl exible rubber outlet, Ø 1/2”, with curved rigid 90° stem, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M), art. no. 2545 (see page 65!);
  • Pressure regulator with manometer, condensation water separator and lubricator, art. no. 7150.

Art. no. 2914XB

The confi guration of components in this kit comply with all metrological standards and requirements concerning accuracy defi ned in the Directive MID MI-005 and can be used therefore as approved system also in legal transactions.

Art. Weight Dimensions (LxWxH) (mm)
2914MID 94 kg 790x900x1400

Art. 2914

Mobile pneumatic oil dispensing kit, for 208 l drums, with hose reel and heavy duty trolley equipped with bigger wheels suitable also for the use on rough surfaces, consisting of:

  • Pneumatic double acting 3:1 oil pump, art. no. 2020;
  • Plastic bung adapter for the fixation of pumps on drums, art. no. 4340;
  • Heavy duty trolley with 4 wheels and grate, art. no. 4389;
  • Open hose reel, art. no. 9016;
  • 15 m rubber hose Ø 1/2”, art. no. 28715;
  • 1 m rubber connection hose Ø 1/2”, art. no. 28701;
  • Electronic flow meter for oil, with control gun, rubber protection guard, trigger guard, rigid outlet, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M), art. no. 2826;
  • Pressure regulator with manometer, condensation water separator and lubricator, art. no. 7150.
  • OPTIONAL: Hydraulic spring braket kit for the controlled rewind of hoses Art. no. /HB.
Art. Weight Dimensions (LxWxH) (mm)
2914 90 kg 790x830x1400

Art. 2910

Mobile pneumatic oil dispensing kit, for 208 l drums, with hose reel and standard trolley, consisting of:

  • Pneumatic double acting 3:1 – oil pump, art. no. 2020;
  • Plastic bung adapter for the fixation of pumps on drums, art. no. 4340;
  • Trolley with 4 wheels and grate, art. no. 4380;
  • Open hose reel, art. no. 9016;
  • 15 m rubber hose Ø 1/2”, art. no. 28715;
  • 1 m rubber connection hose Ø 1/2”, art. no. 28701;
  • Electronic flow meter for oil, with control gun, rubber protection guard, trigger guard, rigid outlet, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M), art. no. 2826;
  • Pressure regulator with manometer, condensation water separator and lubricator, art. no. 7150.
  • OPTIONAL: Hydraulic spring braket kit for the controlled rewind of hoses Art. no. /HB.
