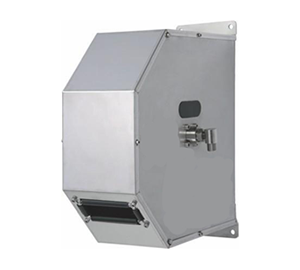

SP Make Automatic rewind, spring-driven hose reel, enclosed series with Stainless Steel 304, suitable for hoses of max 25 mtr lengths and max diameter of 1/2”. The hose reel is supplied without hoses and can be used with hoses for the supply of oils, antifreeze, grease, compressed air and water. (Standard version galvanized steel, available on demand in stainless steel 316).

Application :

  • Manufacturing industry in all sectors for Pneumatic tool, assembly line and other general industrial operations.
  • Municipal Corporations, Garage Workshops for lubrication, washing.
  • Oil Management systems for multi point.
  • Mobile service van.

Features :

  • Double Stand Steel Frame Construction
  • All Hose Reels are made of heavy gauge, high quality steel fabricated and compact design.
  • The Sturdy all welded frame base provides extra strength to handle the extra weight without loosing performance.
  • Dual frame, guide plate and 4-way roller assembly.
  • High-Quality Spring for Long-life of coil spring, SS ratchet spring & non-corrosive ratchet.
  • Standard Swivel inlet: 900 with ½” bsp male thread size & outlet ½” bsp male.
  • Swivel Rotary Seal – PU Seal.
  • Multi-Position Lock Ratchet Secures Hose at desired length.
  • Final Finishing / Painting: powder coated as standard red color. (Other colors are available when you requested).
  • All material is carbon steel as standard. (Stainless hose reels materials are available when you requested).
  • Standard working pressure 600 bar.
  • 6 months manufactures warranty.
MODEL NO FOR SPRING REWIND HOSE SIZE & LENGTH CONNECTION THREADS IN-OUT WEIGHT DIMENSIONS (LXWXH) (MM)
ID OD LENGTH
OHR-EN-1410 SS 1/4" 10 MTR 1/4" (M) - 1/4"(F)
OHR-EN-1415 SS 1/4" 15MTR 1/4" (M) - 1/4" (F) 12 KG 240 X 550 X 450
OHR-EN-1420 SS 1/4" 20 MTR 1/4" (M) - 1/4" (F) 16 KG 240 X 550 X 450
OHR-EN-1425 SS 1/4" 25 MTR 1/4" (M) - 1/4" (F) 19 KG 310 X 550 X 450
OHR-EN-3810 SS 3/8" 10 MTR 3/8" (M) - 3/8" (F)
OHR-EN-3815 SS 3/8" 15 MTR 3/8" (M) - 3/8" (F 12 KG 240 X 550 X 450
OHR-EN-3820 SS 3/8" 20 MTR 3/8" (M) - 3/8" (F) 16 KG 240 X 550 X 450
OHR-EN-3825 SS 3/8" 25 MTR 3/8" (M) - 3/8" (F) 19 KG 310 X 550 X 450
OHR-EN-1210 SS 1/2" 10 MTR 1/2" (M) - 1/2" (F)
OHR-EN-1215 SS 1/2" 15 MTR 1/2" (M) - 1/2" (F) 12 KG 240 X 550 X 450
OHR-EN-1220 SS 1/2" 20 MTR 1/2" (M) - 1/2" (F) 16 KG 240 X 550 X 450
OHR-EN-1225 SS 1/2" 25 MTR 1/2" (M) - 1/2" (F) 19 KG 310 X 550 X 450
