STATIC GROUNDING REEL SERIES SP-AV3000

Auto rewind Static Discharge Grounding Reels MS (CLOSED TYPE)

SP makes Closed & Compact model reels are more suitable for storage of static grounding cable with quick payout and automatic spring rewind. SP Designed for safe and reliable grounding of vehicles, aircraft, and other equipment requiring static bonding. Reels are manufactured with sheet metal. These reels are standard supplied with 5, 10, 15, 20, 25 or 30 Mtr. of Yellow/Red PVC coated galvanised/SS steel/Copper cables. Finishing with powder coating for all models. It comes with latching lock of cable at 500mm length.

Features :-

  • Fully automatic spring rewind
  • Non-sparking latchet
  • 4mm galvanised steel cable with pvc coated 7x7 standard cable
  • 100 amp grounding clamp
  • Electrical Resistance – Max 10 Ohms between damp and mounting base.
  • Metal housing with MIL grade blue colour powder coated

Application :-

  • Fuel tank loading-unloading static grounding
  • Airplane fuel filling static grounding
  • Utility vehicle static grounding
  • Maintenance shops
  • Any place where static might build up
MODEL NO. CABLE MAX RESISTANCE REEL DIMENSION WEIGHT
LENGTH OD W H D
SP SDR - 05 CS 5 MTR 4 MM 10 Ohms
SP SDR - 10 CS 10 MTR 4 MM 10 Ohms
SP SDR - 15 CS 15 MTR 4 MM 10 Ohms
SP SDR - 20 CS 20 MTR 4 MM 10 Ohms
SP SDR - 25 CS 25 MTR 4 MM 10 Ohms
SP SDR - 30 CS 30 MTR 4 MM 10 Ohms

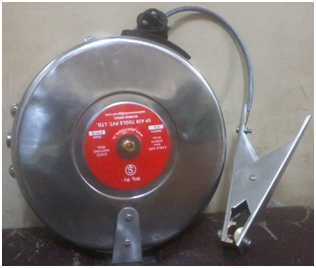

Auto rewind Static Discharge Grounding Reels SS (CLOSED TYPE)

SP Closed & Compact model reels are more suitable for storage of static grounding cable with quick payout and automatic spring rewind With 304 stainless steel housing, cable and spare fitting. SP grounding reel provides superior quality, durability and corrosion resistance. No powder coating require for finish. This reel is more suitable for clean environments such as food and pharmaceutical processing, marine, chemical and combustible dust applications. These reels are standard supplied with 05, 10, 15, 20 Mtr. of Yellow/Red PVC coated Stainless steel cables. It comes with latching lock of cable at 500mm length.

Features :-

  • Fully automatic spring rewind
  • Non-sparking latchet
  • 4mm stainless steel pvc coated 7x7 standard cable
  • 50 amp and 100 amp stainless steel grounding clamp
  • Electrical Resistance – Max 10 Ohms between damp and mounting base.
  • Stainless steel 304 housing for chemical industry and outdoor use.

Application :-

  • Fuel tank loading-unloading static grounding
  • Airplane fuel filling static grounding
  • Utility vehicle static grounding
  • Maintenance shops
  • Food and pharmaceutical processing
  • Any place where static might build up
MODEL NO. CABLE MAX RESISTANCE REEL DIMENSION WEIGHT
LENGTH OD W H D
SP SDR - 05 CS 5 MTR 4 MM 10 Ohms
SP SDR - 10 CS 10 MTR 4 MM 10 Ohms
SP SDR - 15 CS 15 MTR 4 MM 10 Ohms
SP SDR - 20 CS 20 MTR 4 MM 10 Ohms

Auto rewind Static Discharge Grounding Reels MS (OPEN TYPE)

SP SDR reels are more suitable for storage of static grounding cable with quick payout and automatic spring rewind. Designed for safe and reliable grounding of vehicles, aircraft and other equipment requiring static bonding. These reels are manufactured with heavy duty gauge of metal. These reels are standard supplied with 10, 15, 20, 25 or 30 Mtr. of Yellow/Red PVC coated galvanised/SS steel cable. Finishing powder coating for all models. It comes with multi-position arm guide and latching of cable at 500mm length.

Features :-

  • Heavy duty steel construction
  • Fully automatic spring rewind
  • Non-sparking latchet
  • 4mm galvanised steel cable with PVC coated 7x7 standard cables.
  • 100 amp grounding clamp
  • Multi-position arm guide
  • Electrical Resistance – Max 10 Ohms between damp and mounting base.
  • MIL grade blue colour powder coated

Application :-

  • Fuel tank loading-unloading static grounding
  • Airplane fuel filling static grounding
  • Utility vehicle static grounding
  • Maintenance shops
MODEL NO. CABLE MAX RESISTANCE REEL DIMENSION WEIGHT
LENGTH OD W H D
SP SDR - 10 CS 10 MTR 4 MM 10 Ohms
SP SDR - 15 CS 15 MTR 4 MM 10 Ohms
SP SDR - 20 CS 20 MTR 4 MM 10 Ohms
