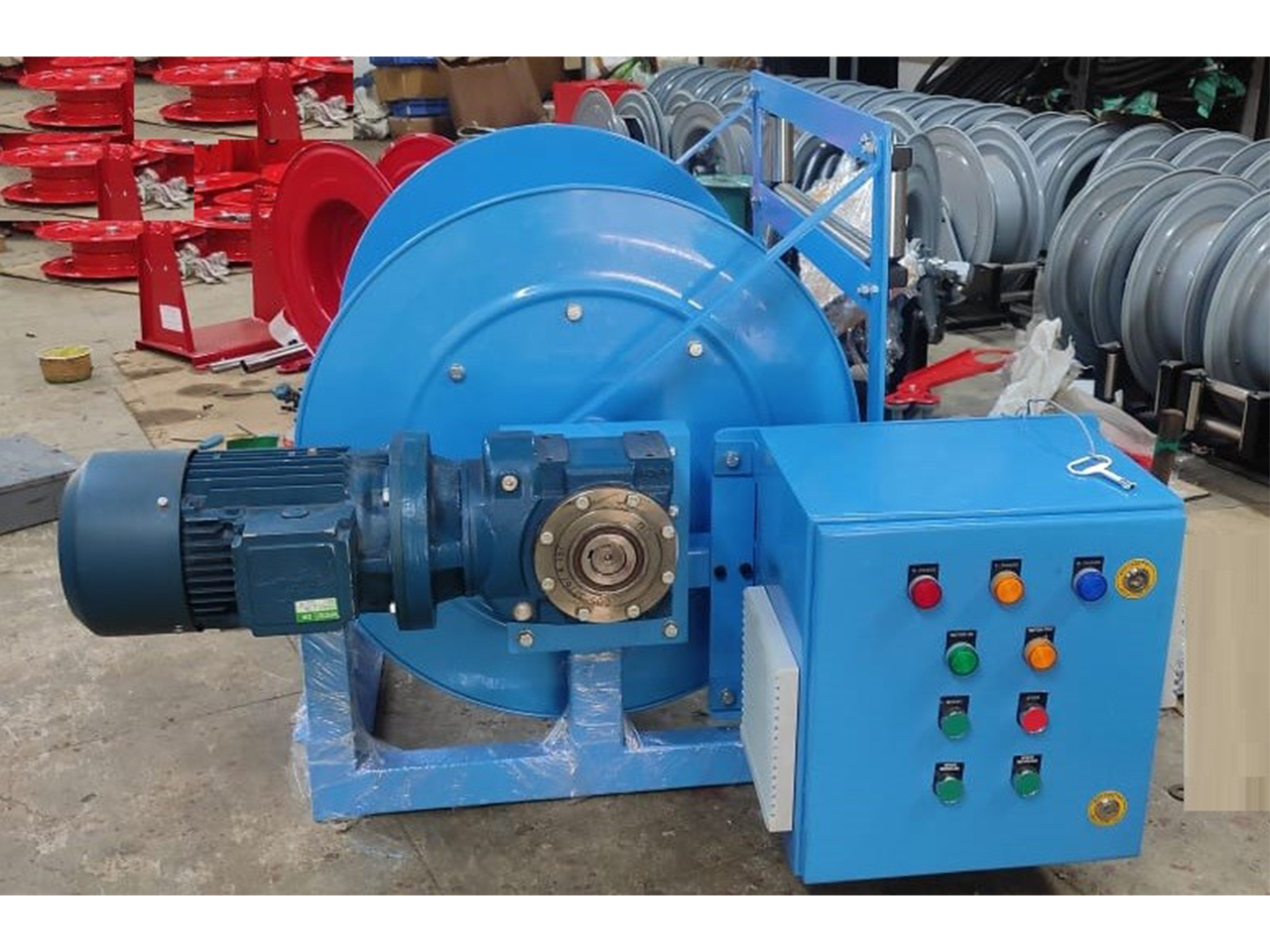

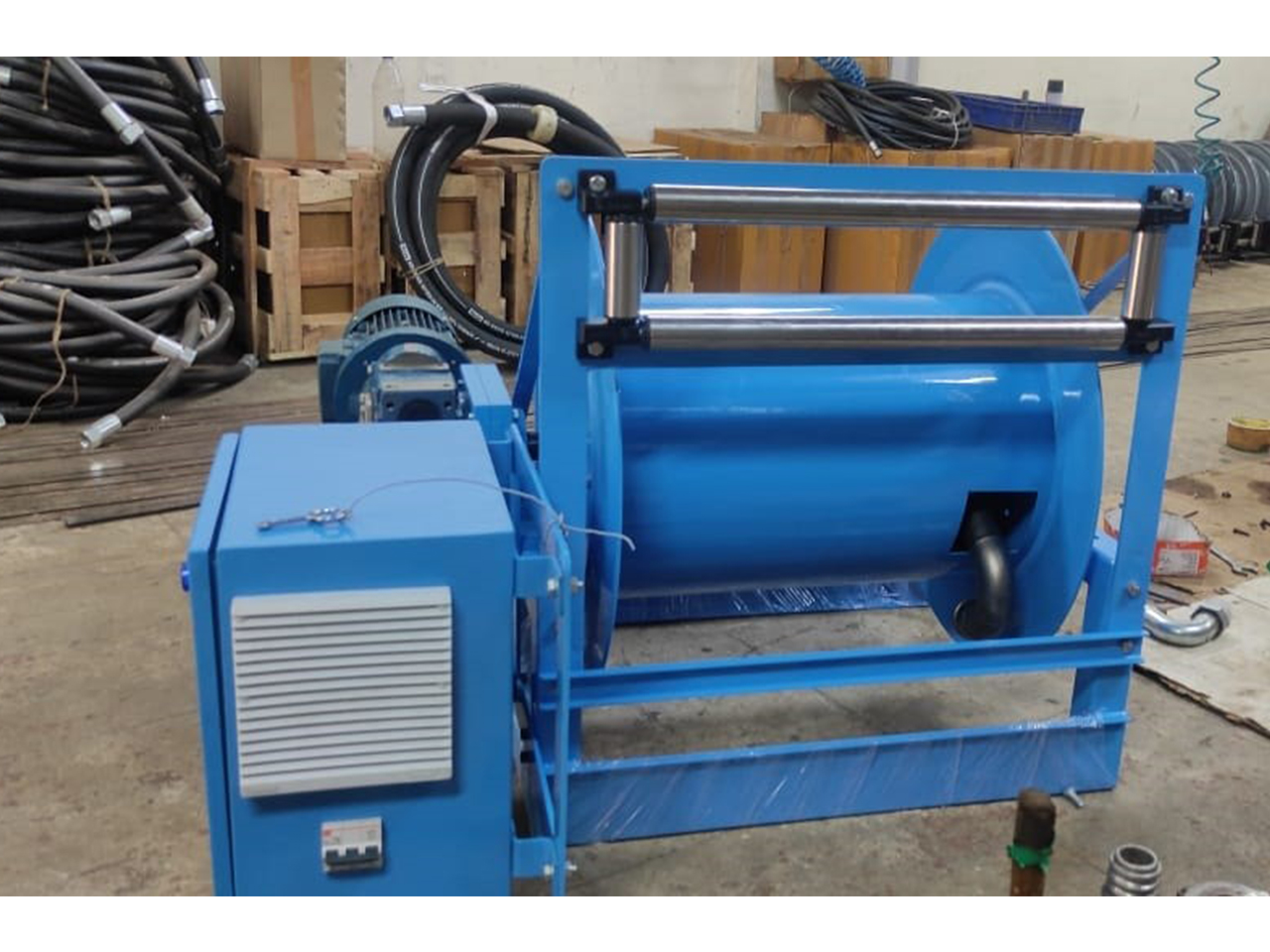

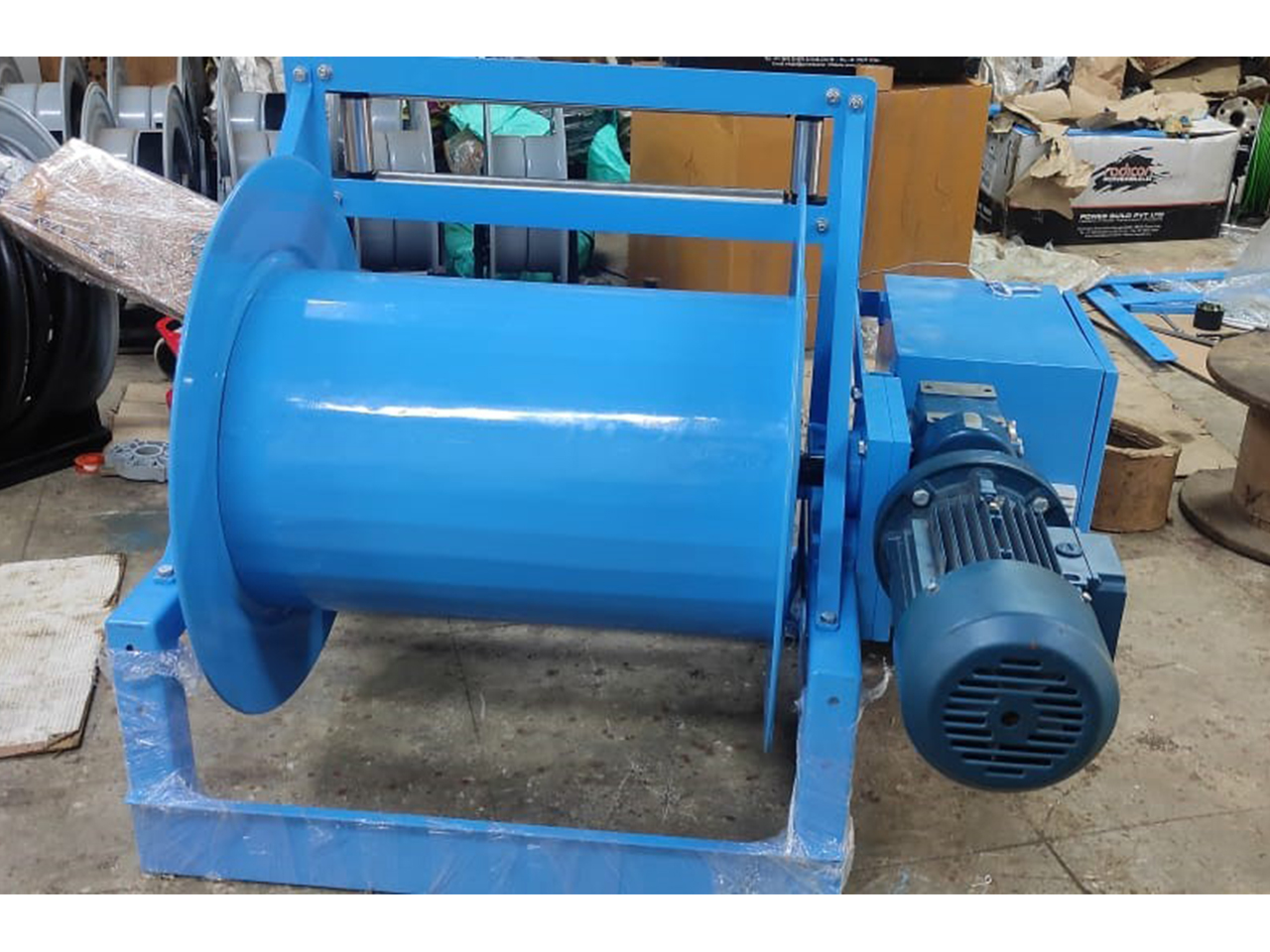

HEAVY DUTY TRANSFER HOSE REEL

Construction :

• Industrial heavy-duty steel frame.
• Hose reel can be used Manual hand gear-driven or with an electric motor, hydraulic motor, Gear Motor or Air Motor.
• Standard hose reel Swivel inlet: 90° in aluminium with 1/2” to 3” BSP F Thread 1/2” to 3”.
• Standard hose reel outlet: 1/2” to 3” BSP F thread for 1/2” to 3”.
• Hose reel inlet, outlet & shaft assembly in aluminium other material upon request.
• Standard working pressure.

NOTICE : Flexible hose must be used between hose reel inlet & main inlet pipe Reel Dimension are subject to change. X & Y Indicates Mounting holes. On Request Reel can be Supplied with other diameter of hoses & length.
